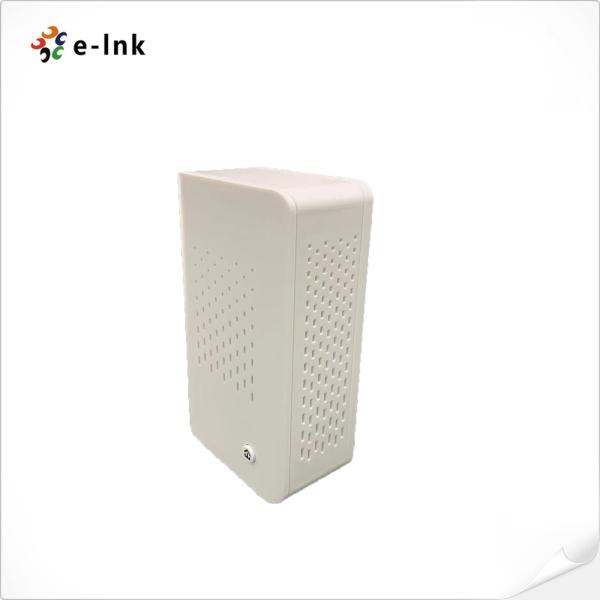

1200Mbps Passthrough Powerline PoE Injector Adapter With Power Socket
1200Mbps Passthrough Powerline Adapter with Power Socket
Advantages
· High-Speed powerline adapter with Ethernet interface for fast data transfer over the existing household power supply;
· The high-speed transfer rates of 1200Mbps even make it possible to transmit video in DVD quality;
· No need new wires and use at any power socket with up to ranges of 500meters;
· Simple plug and easy to install;
· Fully compliant with IEEE802.3/802.3u,HomePlugAV/HomePlugAV2 standard;
· Provide 128-bit AES link encryption for Powerline networks;
· Up to 1200Mbps data rate on Powerline networking;
· Allow user to connect PCs and other devices conveniently via any power outlet at home.
Technical Indexes
| Interface | 1*LAN 10/100/1000M RJ45 |
| LED display light | PWR(power light), PLC(PLC signal light), ETH(Ethernet light) |
| Transmission band | 2-68MHZ |
| Standards | HomePlug AV2 IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1p,
Auto MDI/X |
| Security | 128 Bit AES |
| Transfer rate(PHY) | 1200Mbps |
| Modulation | OFDM |
| Plug | EU,UK,AU,US |
| Support Operation System | Windows 7 (32 Bit), Windows 7 (64 Bit)
Windows 8.x (32 Bit), Windows 8.x (64 Bit), Windows 8.x Pro (32 Bit), Windows 8.x Pro (64 Bit)
Ubuntu-Linux 12.04 (32 Bit)
MAC OS X 10.6, MAC OS X 10.7, MAC OS X 10.8, MAC OS X 10.9 |
| Quantity of a group(Max) | 15 pieces |
| Working voltage | AC 100V-240V 60/50Hz |
| Operating environment | Working temperature:0℃-70℃ |
| Storage temperature:-20℃-70℃ |
| Working humidity:10%-85% no condense |
| Storage humidity:5%-90% no condense |
| Size (LxWxH) | 145*70*43(mm) |
| Weight | 0.3kg |
| Certification | FCC CE ROHS |
Overview
The LNK-P1200ST Smart Link HomePlug AV2 1200Mbps Ethernet Adapter embarks on a concept of No New Wires data communications, and it transforms your in-house powerline into a networking infrastructure. It provides SmartLink Plus coupling to the Line-Neutral pair and the Line-Ground pair of the AC mains. It successfully reduce "dead spot", increase throughput and increase network coverage within a home. Surf the Internet and share data at the speed up to 1Gbps PHY rates through powerline with AC outlet design, it's Convenient for the end user.
LNK-P1200ST Smart Link HomePlugAV2 engine is a Qualcomm Atheros QCA7500 chipset . It features faster processing power, Fast Ethernet host interfaces and an enhanced analog front end. The solution is compliance with IEEE1901 , Homeplug AV and Homeplug AV2, hence allowing hassle free compatibility with existing Homeplug AV2 devices and other suppliers of IEEE1901 PLC (Powerline Line Communication) devices.
